1″ Snap Lock Standing Seam Panels

The Snap Lock panel has been an industry standard for many years and for good reason. This panel provides a lifetime of protection against all of mother natures elements. This true standing seam panel is manufactured in an 1” & 1.5” seam height. It is most commonly manufactured in widths of 16.9” & 15.4”. The width is dependent upon the height of the seam that is spec’d for the job, however this panel can be made into many different widths if required. Attributes: True Hidden Fastener Clip System, On-Site Rollforming, Architectural Appearance, High Wind Loads, Many Material Options.

*Certain colors may be subject to an order minimum and longer lead time. Teton Steel recommends obtaining a color chip prior to placing an order. Please contact your Teton Steel representative to learn more.



Panel Color Options

24 Gauge *Stock Colors*
Charcoal Gray (Teton)
Dark Bronze (Teton)
Gotham Patina Low Gloss/Low Sheen (Teton)
Gun Metal Low Gloss/Low Sheen (Teton)
Matte Black (Teton)
Medium Bronze (Teton)
Galvalume Non-Painted (Teton)
Colonial Red (Teton)
Slate Gray (Teton)
Rustic Rawhide (Teton)
24 Gauge Special Order (takes extra time)
Aged Copper (CMG)
Almond (CMG)
Ash Gray (CMG)
Bone White (CMG)
Bright White (CMG)
Burgundy (CMG)
Burnished Slate (CMG)
Champagne (CMG)
Charcoal Gray (CMG)
Cityscape (CMG)
Classic Green (CMG)
Colonial Red (CMG)
Copper Penny (CMG)
Dark Bronze (CMG)
Deep Black (CMG)
Hartford Green (CMG)
Mansard Brown (CMG)
Matte Black (CMG)
Medium Bronze (CMG)
Musket Gray (CMG)
Regal Red (CMG)
Royal Blue (CMG)
Sandstone (CMG)
Sierra Tan
Silver Metallic (CMG)
Slate Blue (CMG)
Slate Gray (CMG)
Stone White (CMG)
Teal (CMG)
Terra Cotta (CMG)
Vintage (CMG)
Weathered Zinc (CMG)
Western Rust (CMG)
26 Gauge *Stock Colors*
White (Teton)
Dark Gray (Teton)
Dark Brown (Teton)
Weathered Copper (Teton)
Dark Green (Teton)
Copper Penny (Teton)
Light Gray (Teton)
26 Gauge Special Order (takes extra time)
Almond (CMG)
Ash Gray (CMG)
Bone White (CMG)
Burgundy (CMG)
Burnished Slate (CMG)
Charcoal Gray (CMG)
Classic Green (CMG)
Colonial Red (CMG)
Copper Penny (CMG)
Dark Bronze (CMG)
Deep Black (CMG)
Mansard Brown (CMG)
Medium Bronze (CMG)
Matte Black (CMG)
Musket Gray (CMG)
Pebble Clay (CMG)
Sierra Tan
Slate Blue (CMG)
Slate Gray (CMG)
Terra Cotta (CMG)
Terra Cotta (Firestone)

Available Gauges

24, 26
* Certain colors may be subject to an order minimum and longer lead time. Please contact your Teton Steel representative to learn more.

Weight

1.00lbs/SqFt (24)
.75lbs/SqFt (26)

Substrate

AZ-50, Grade D, 50,000ksi

Paint Systems

Durapon70™ PVDF, ULTRA-CLAD™ Kynar500®/Hylar5000®

Warranties

Durapon70™ PVDF – 35 year
ULTRA-CLAD™ - 35 year
Zincalume® AZ50 – 20 year

Available Materials

Painted, Galvalume, ReziBond, 16 & 20 oz Copper

Minimum Slope

3:12

Fastener Application

Roof Application: Fastener Spacing:
12” and 24”, refer to engineering specifications for proper clip spacing and substrate specifications. Standing seam metal roofing can be used in conjunction with exposed fastener trim pieces or trim that is designed to reduce/ eliminate the need of exposed fasteners on the roofing surface. This designation must be made prior to production.

Panel Options

Flat Panel, Striations.

Downloadable Resources

Snap Lock Brochure Coated Metals Warranty Dura Coat 24 Gauge Warranty Dura Coat 26 Gauge Warranty Teton Steel Color Chart CMG Color Chart

Screw Patterns

Mechanical-Lock-application-details

SnapLock_2

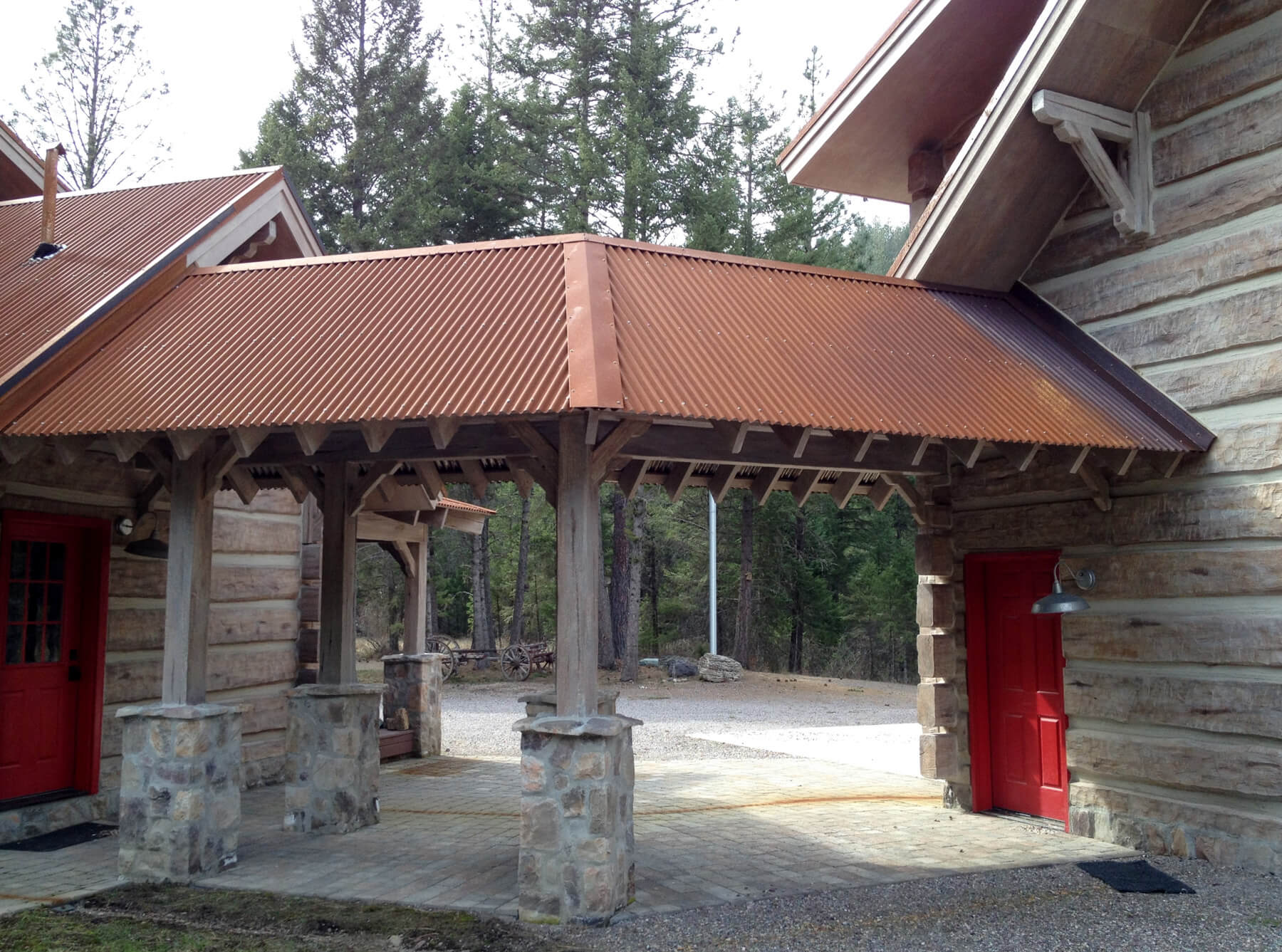

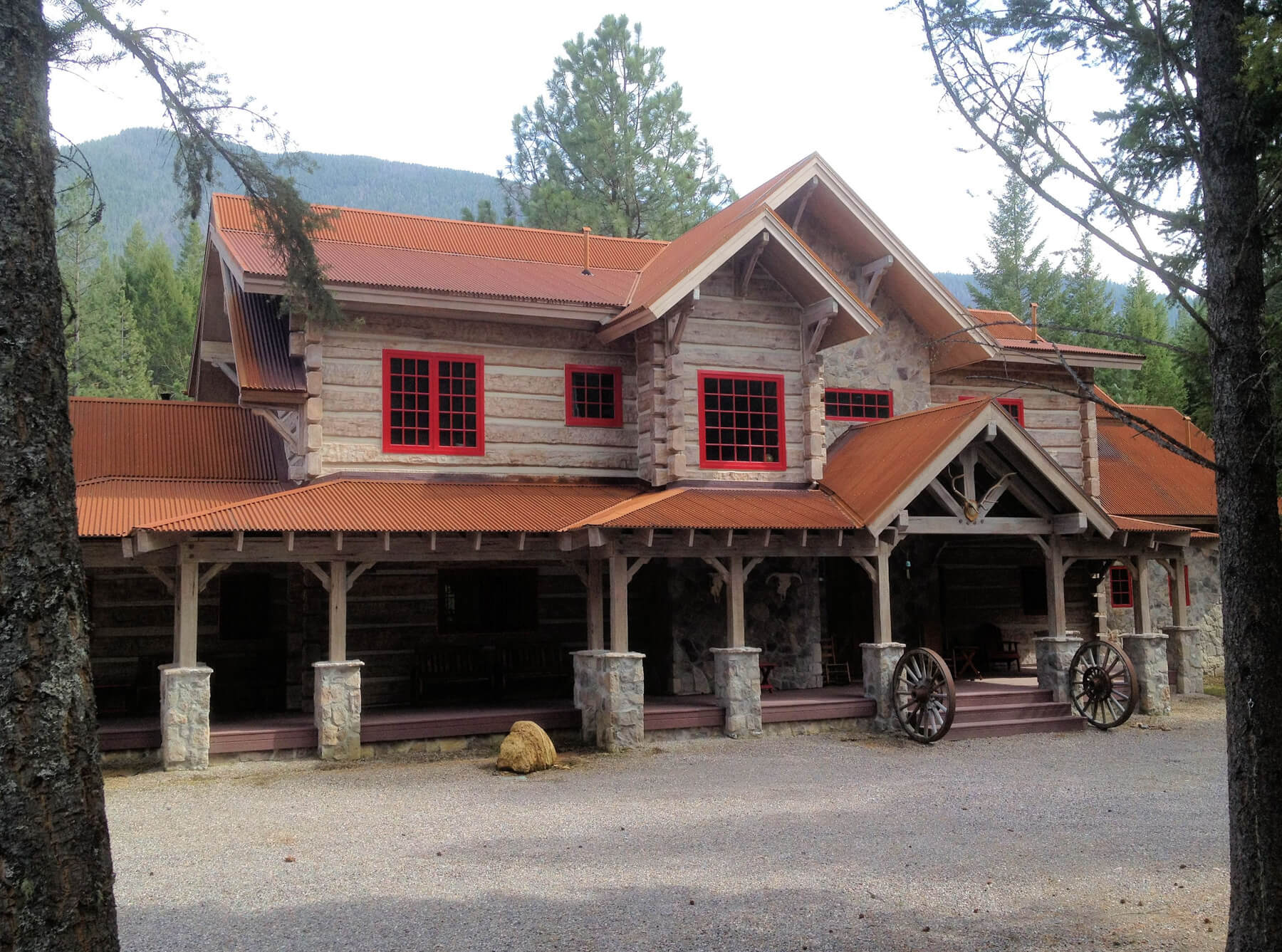

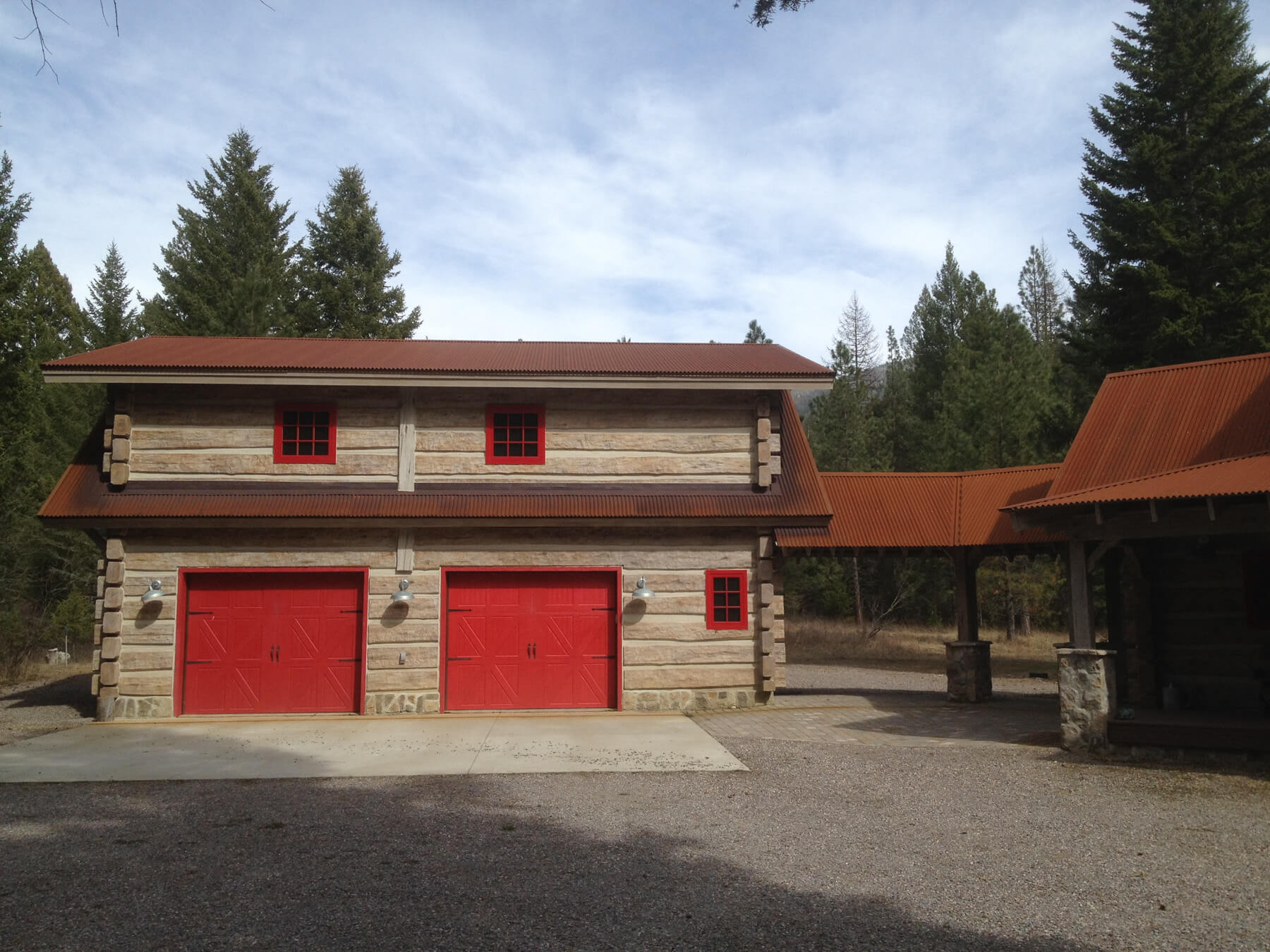

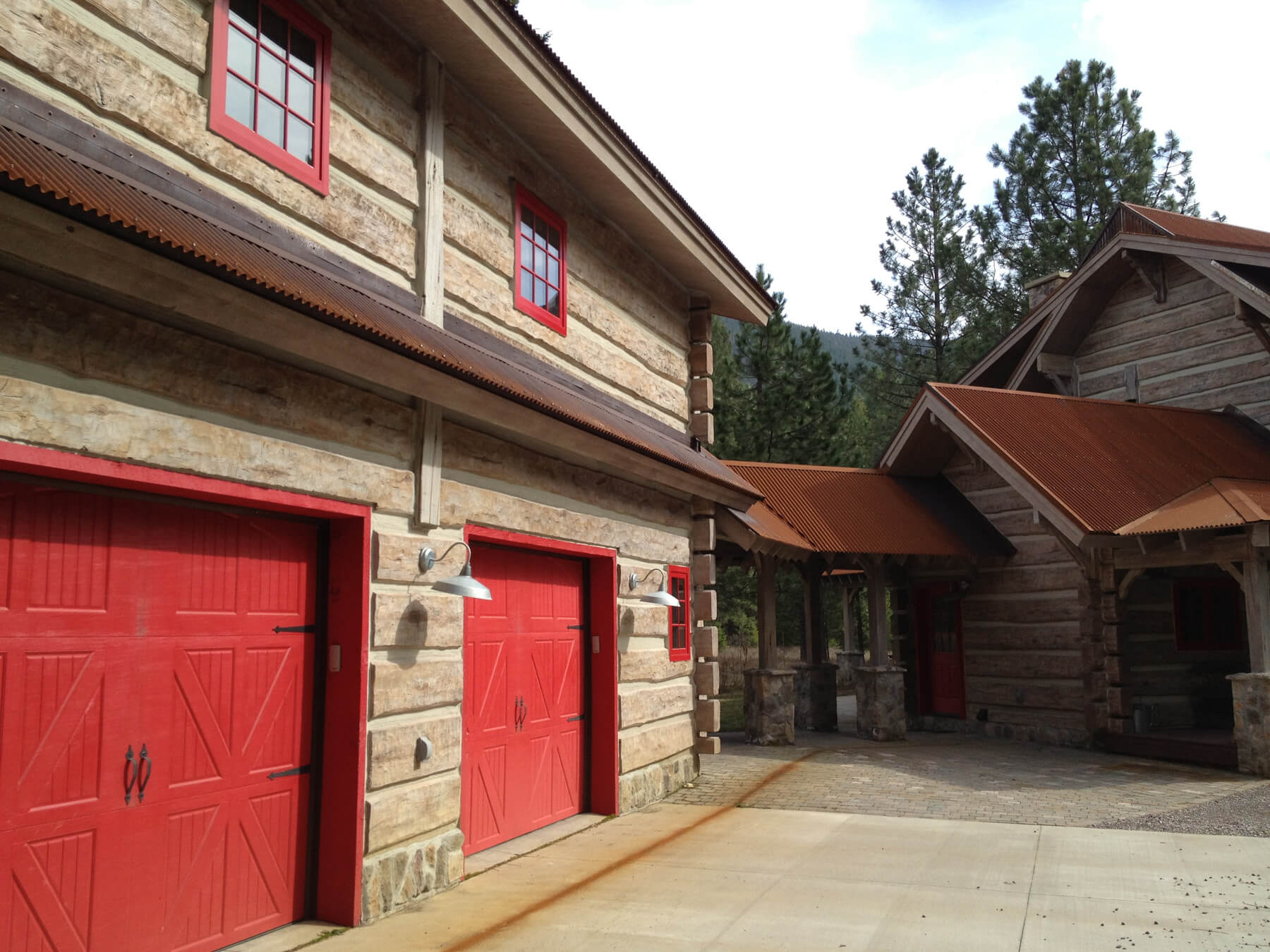

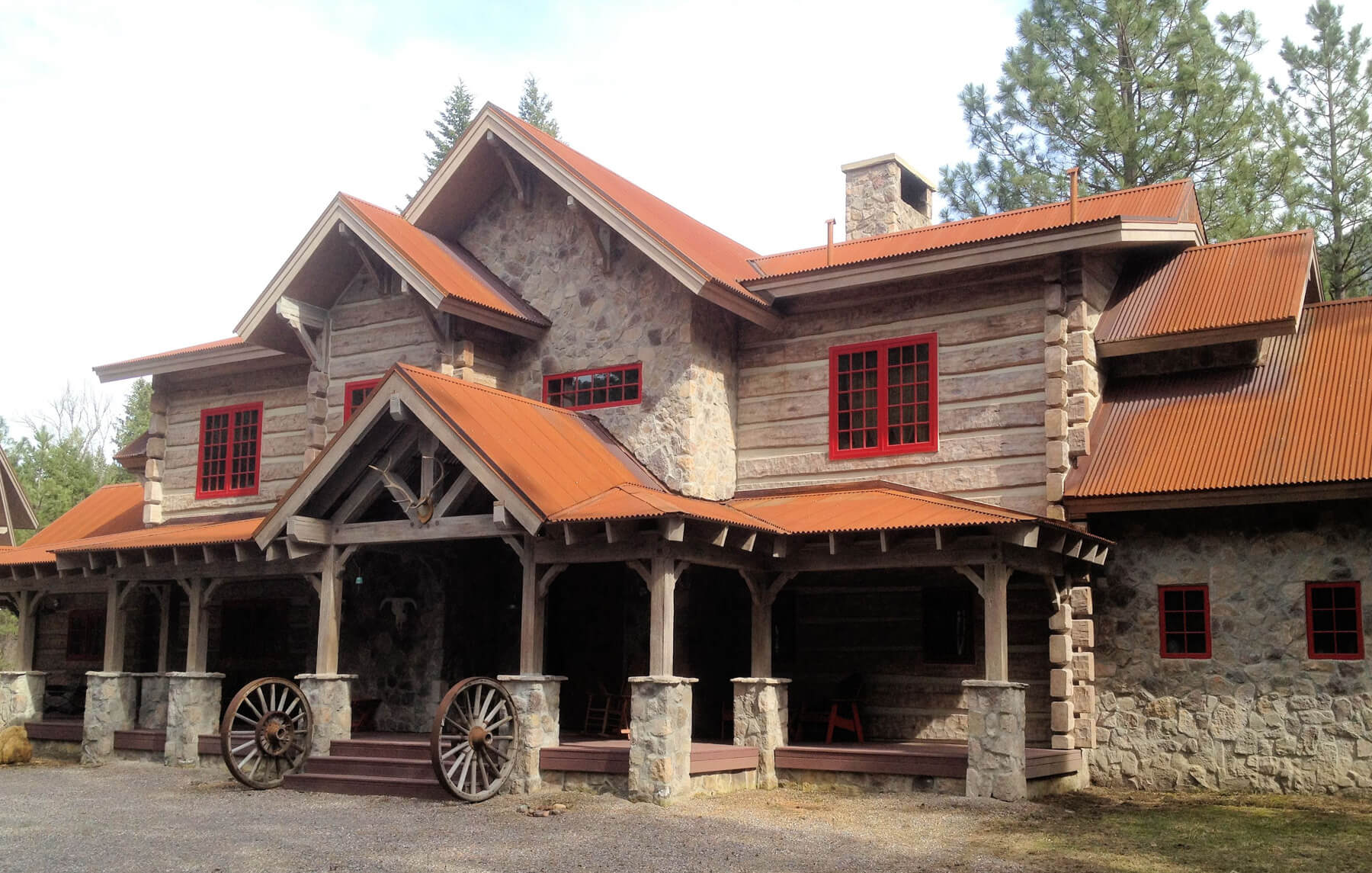

Flatiron-Steel-011 Flatiron-Steel-003 Flatiron-Steel-005 Flatiron-Steel-010 Flatiron-Steel-004
