2.5″ Corrugated

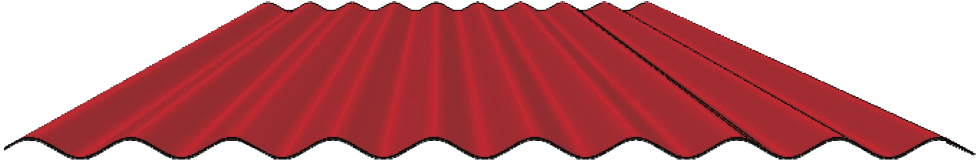

2.5″ Corrugated Metal Roofing Panels

This economical corrugated panel is perfect for interior and exterior applications. The 2 ½” Corrugated Panel has a single overlap system for vertical applications and a double overlap system for roofing applications. It is made in lightweight 28 gauge material, can be cut to length. The 2.5” corrugated is commonly used as a roofing application, as well as interior applications for garages, underneath patio’s, and custom design elements.

*Certain colors may be subject to an order minimum and longer lead time. Teton Steel recommends obtaining a color chip prior to placing an order. Please contact your Teton Steel representative to learn more.



Panel Color Options

28 Gauge
Zincalume (Teton)
White (Teton)
Light Stone (Teton)
Beige (Teton)
Desert Brown (Teton)
Medium Brown (Teton)
Dark Brown (Teton)
Light Gray (Teton)
Dark Gray (Teton)
Dark Blue (Teton)
Red (Teton)
Dark Green (Teton)
Forest Green (Teton)
Black (Teton)

Available Gauges

28
* Certain colors may be subject to an order minimum and longer lead time. Please contact your Teton Steel representative to learn more.

Weight

1.5lbs/LnFt

Substrate

AZ-50, Grade D, 50,000ksi

Paint System

XT-40S, Certified Cool, Energy Star® Rated, Silicone Modified Polyester

Warranties

SMP 40 Year Warranty , 20 year substrate warranty for the G-90

Available Materials

Painted and Galvalume

Minimum Slope

3:12 or greater pitch

Screw Patterns

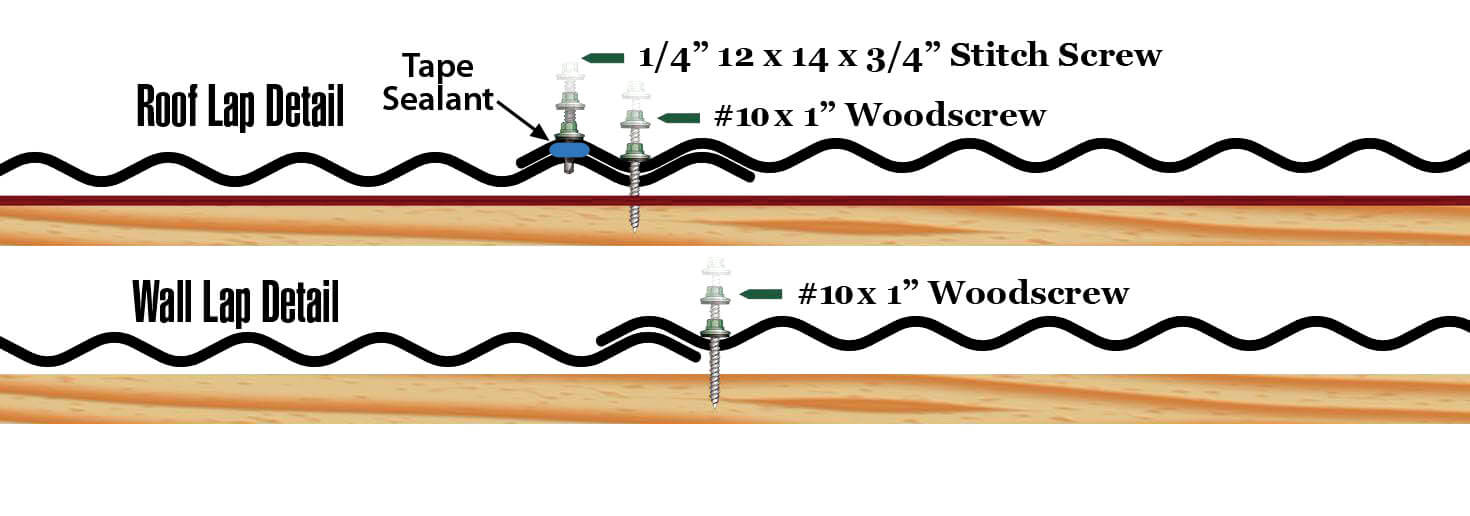

2.5in-Corrugated-application-details

2.5in-Corrugated-fastening-pattern-modified
